RAM Mounts
RAM Torque Large Rail Base
RAM Torque Large Rail Base
Regular price
$45.90 AUD
Regular price
Sale price
$45.90 AUD
Unit price
/
per
Couldn't load pickup availability

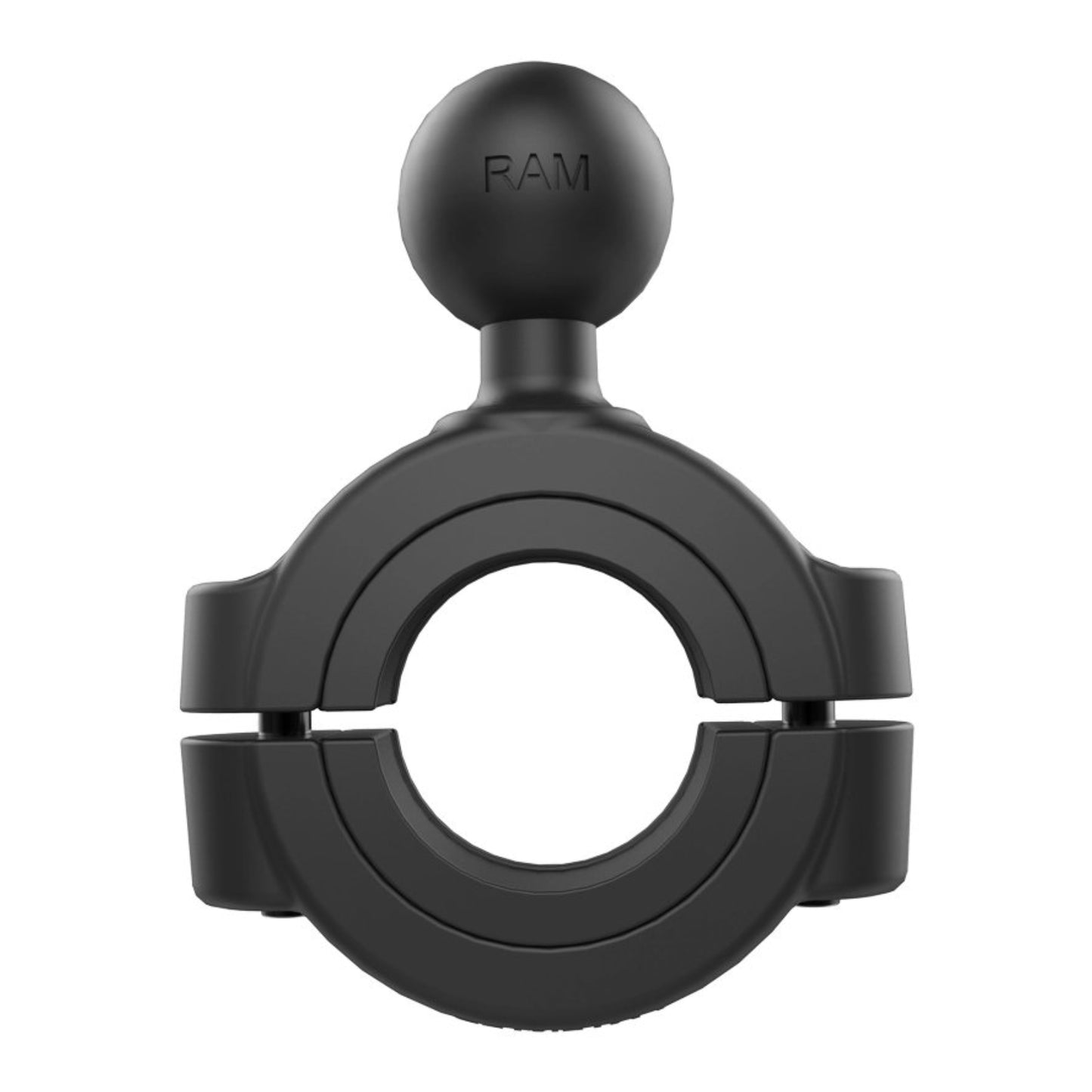

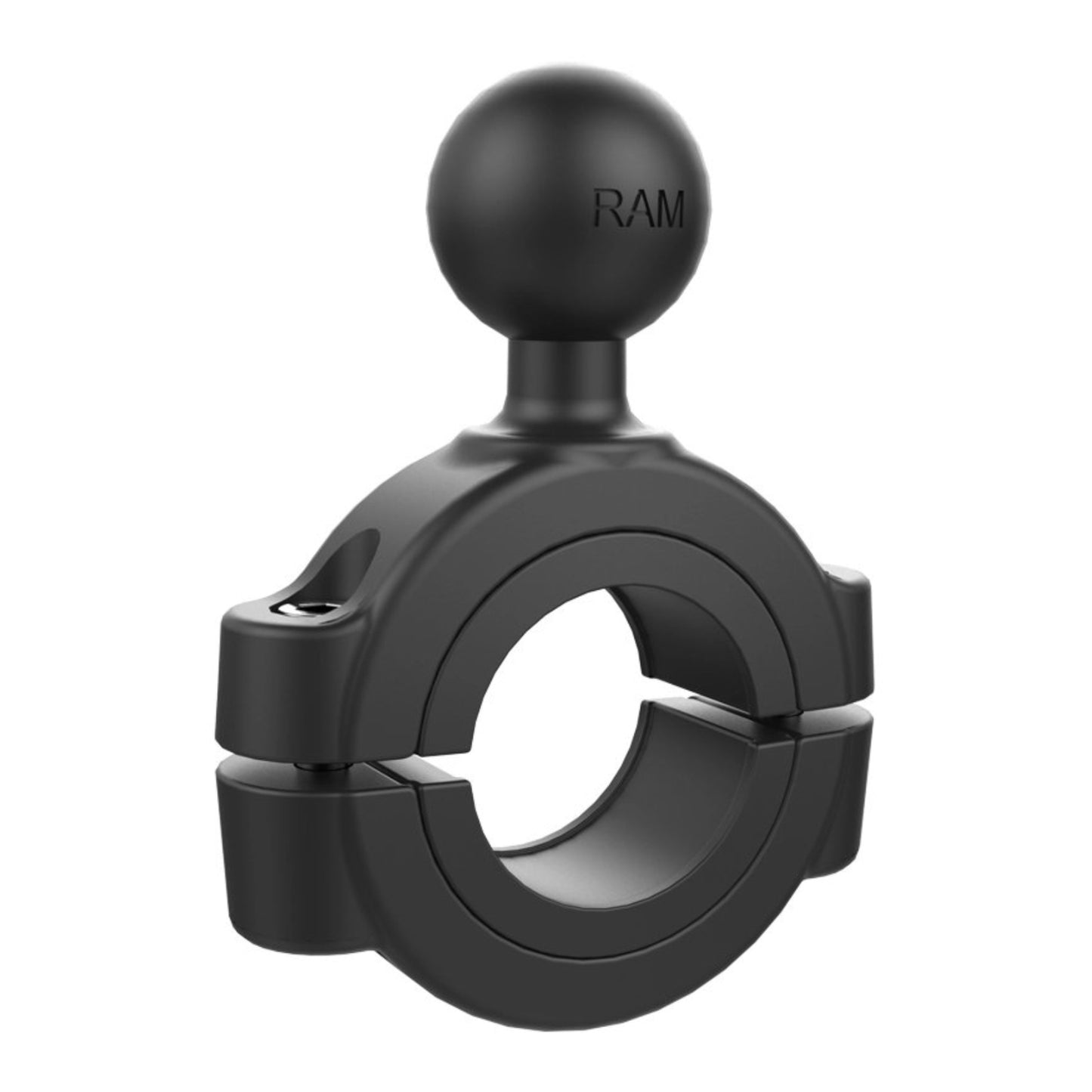

The large version of the RAM® Torque™ handlebar mounting base features a 1" B size RAM® rubber ball and is compatible with rails 1 1/8” to 1 1/2" in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The large RAM® Torque™ mounting base also includes nylon-insert locknuts to prevent loosening in high vibration environments.
Features:
- Handlebar mounting base with B size 1" rubber ball accommodates rails 1 1/8" to 1 1/2" in diameter

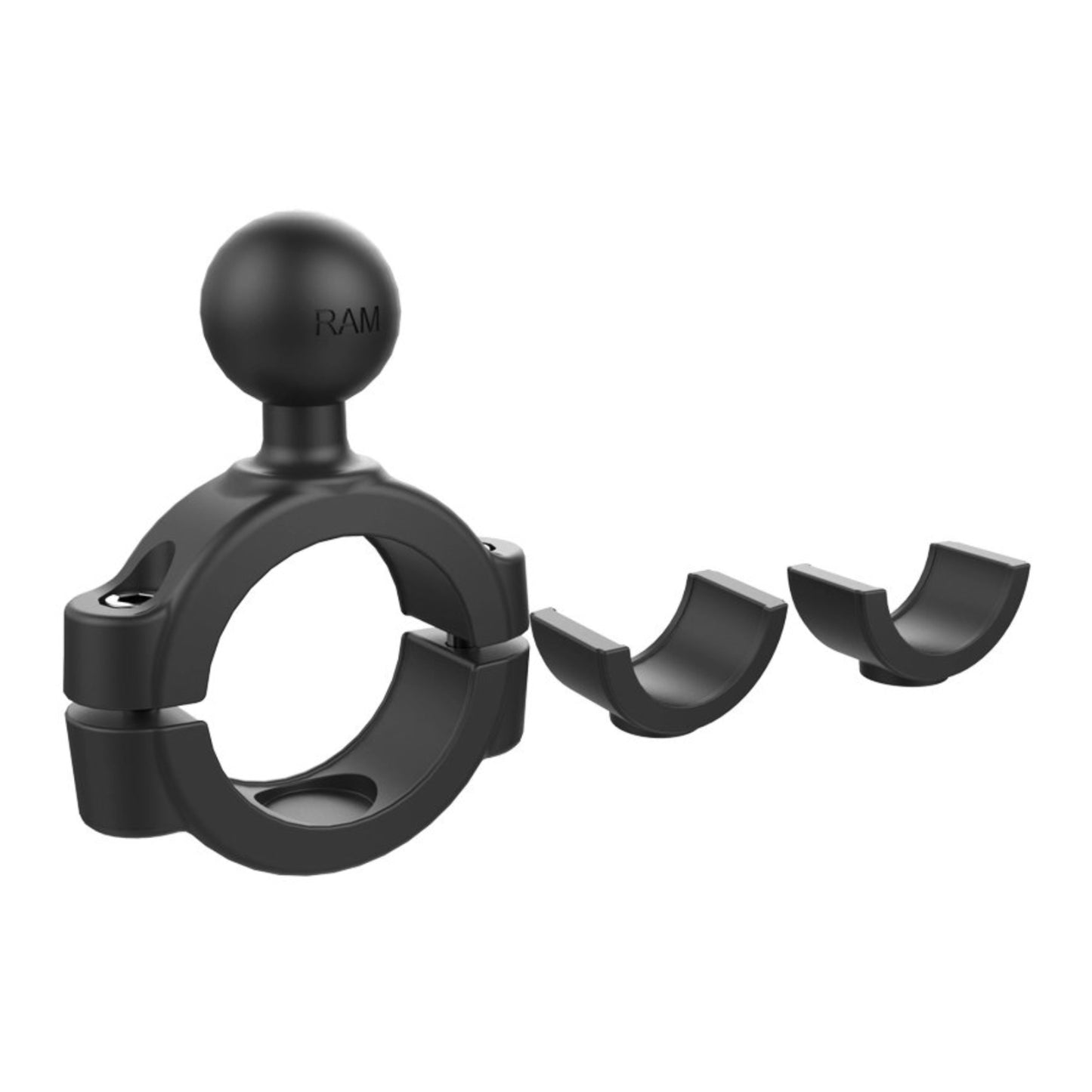

- Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Specifications:

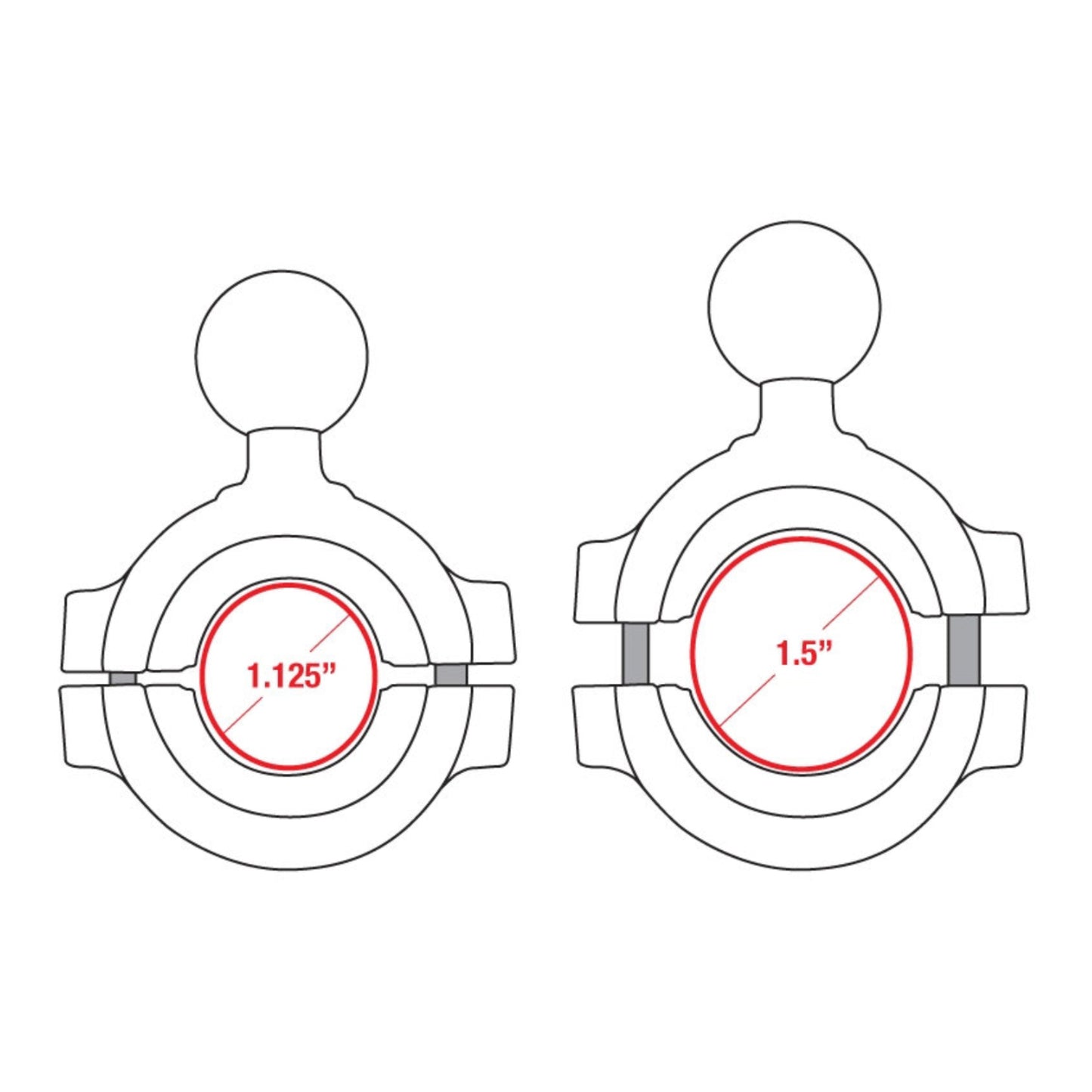

- CLAMP RANGE: 1.125" (28.5mm) - 1.5" (38.1mm)diameter
- BALL SIZE: B Size (1", 25.4mm)

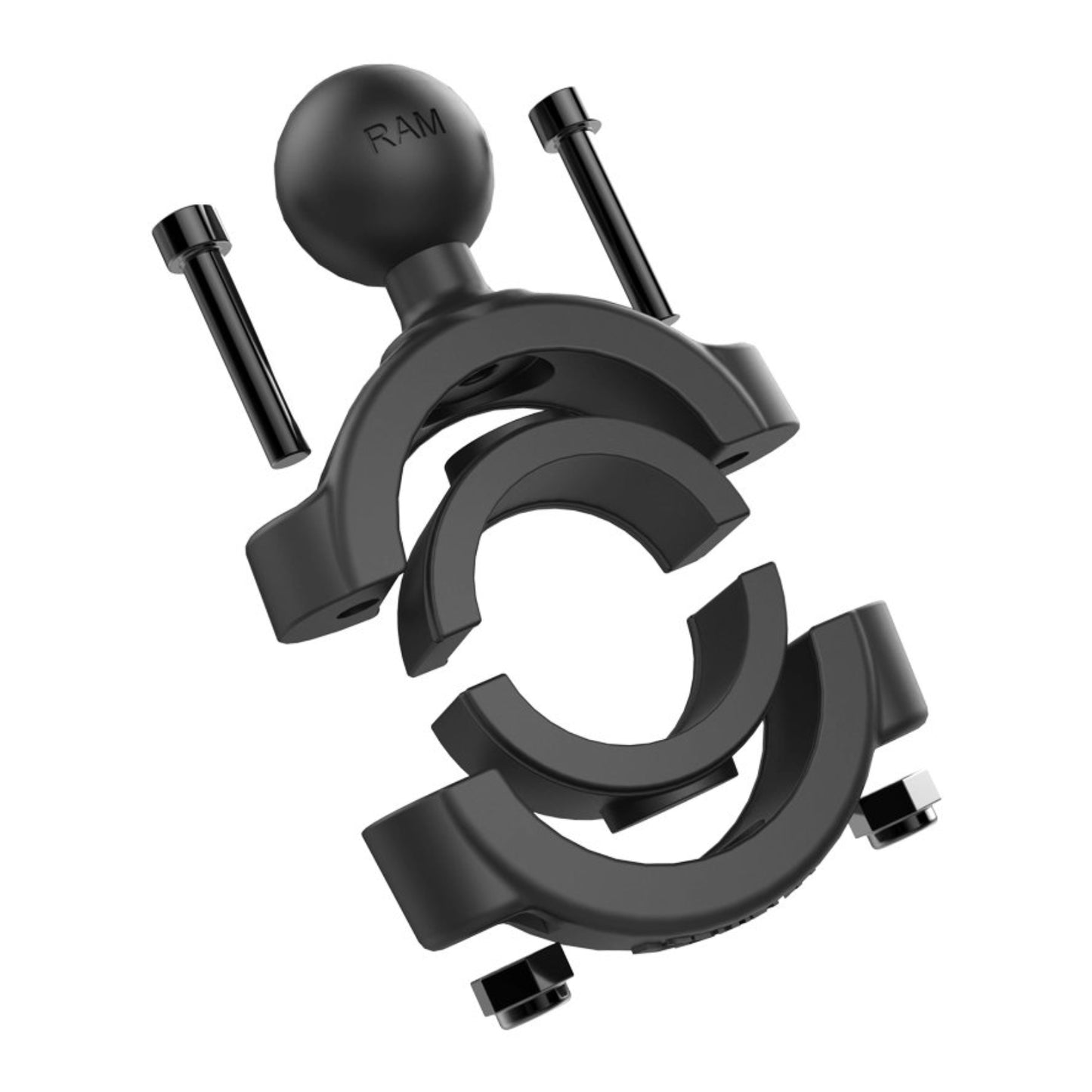

Harware Included:
- x2 #10-24 x 1" Socket Head Cap Screws
- x2 #10-24 Nylock Nuts
- x2 1.12" Split Reducing Bushings
- x2 1.27" Split Reducing Bushings
- x1 5/32" Hex Key Wrench
- x1 127mm x 17mm Rubber Adhesive Strip
