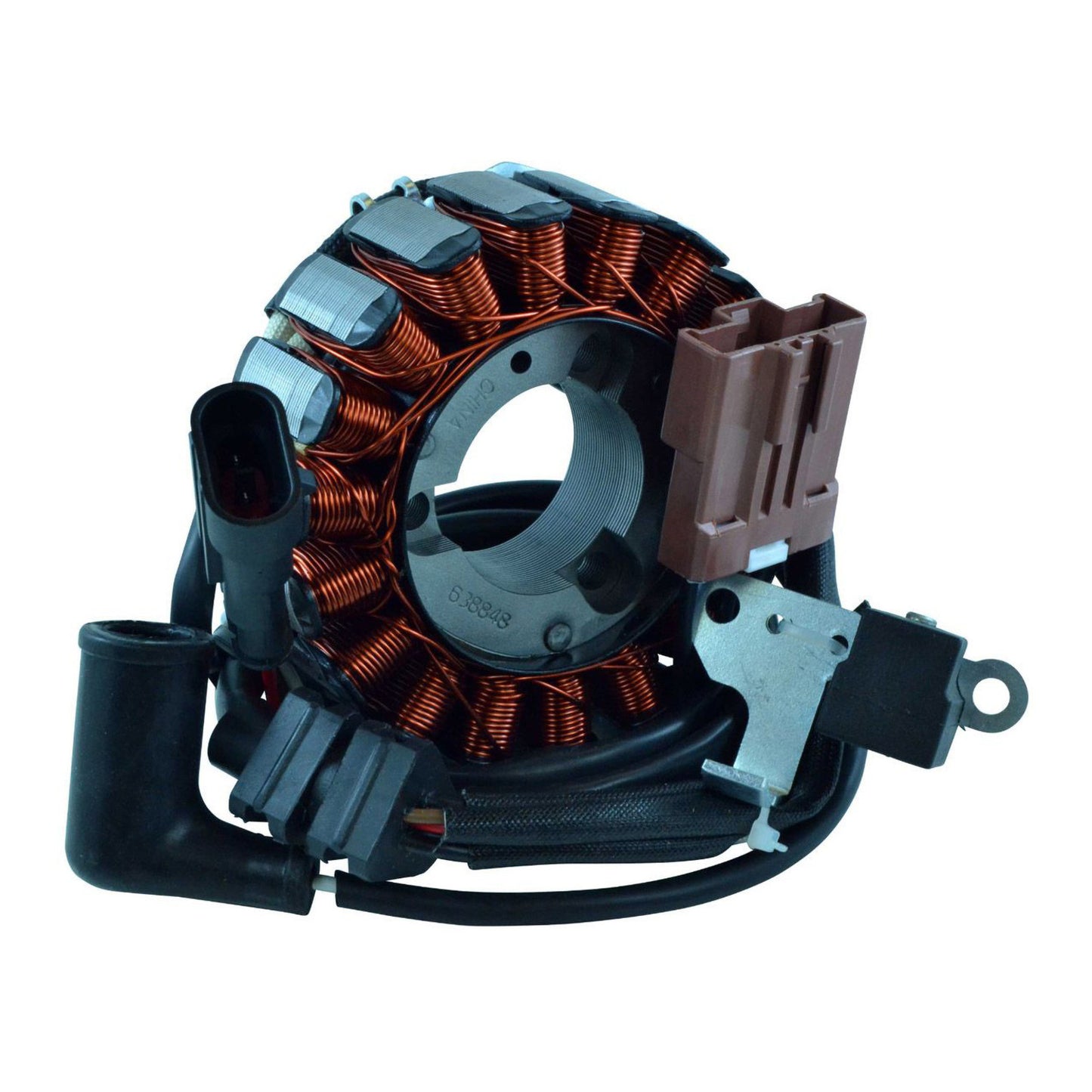

STATOR ASSTD SCOOTERS 2003-2017 (RMS010-104193)
STATOR ASSTD SCOOTERS 2003-2017 (RMS010-104193)
Regular price
$209.99 AUD
Regular price
Sale price
$209.99 AUD
Unit price
/
per
Couldn't load pickup availability
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials
- Highest-grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Other specifications:
- Number of wires: 6
- Number of plugs: 3
- Number of pins: 6
- Number of poles: 18
Wire-to-wire resistance:
- Alternator :Yellow between each Yellow = 0.4 ohms +-20%
- Pickup: Green/White to Yellow/White = 125 ohms +-20%
- Source: Black/Red to Ground = 210 ohms +-20%
