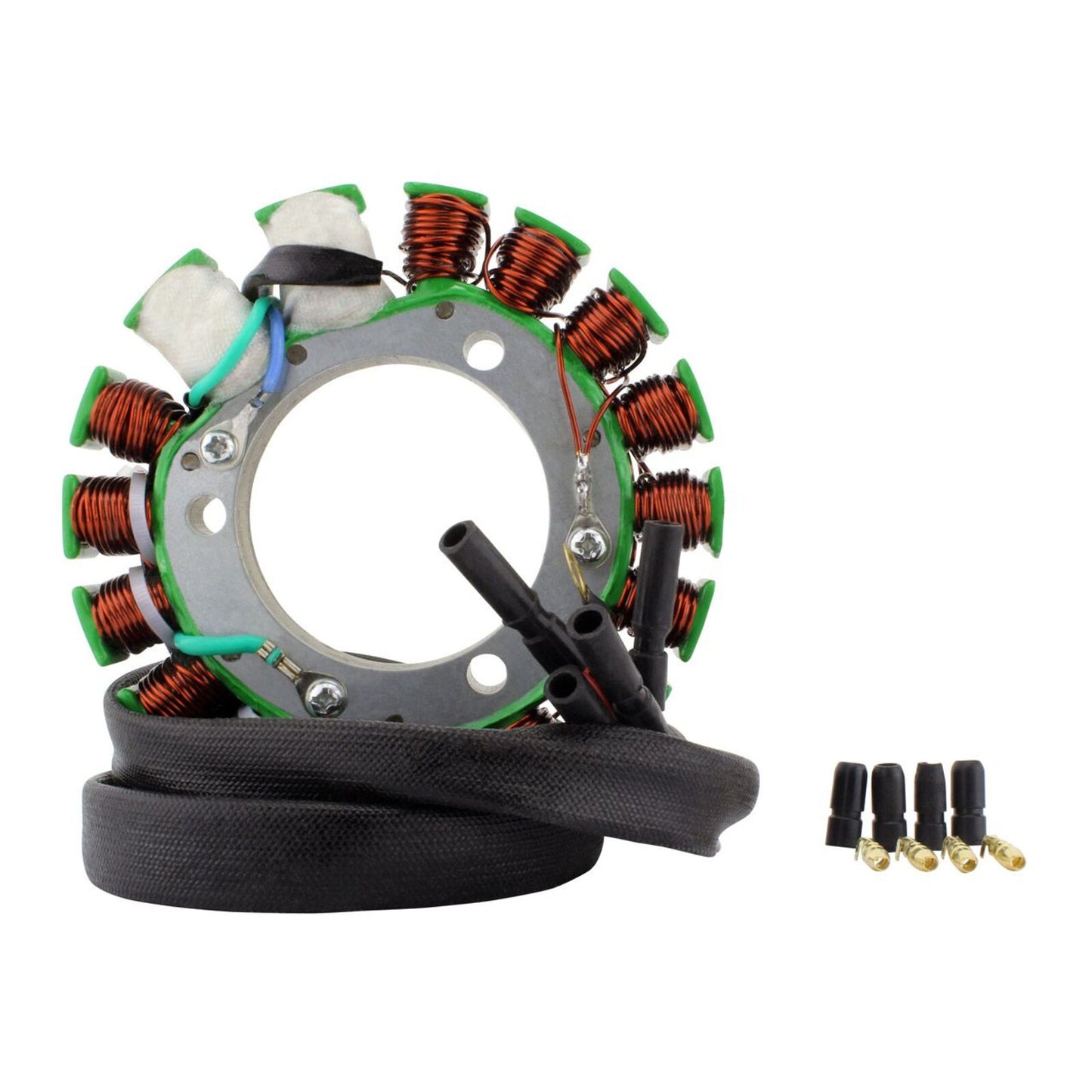

Highest grade of copper winding, resistant to 200 degrees Celsius
2 x 100W

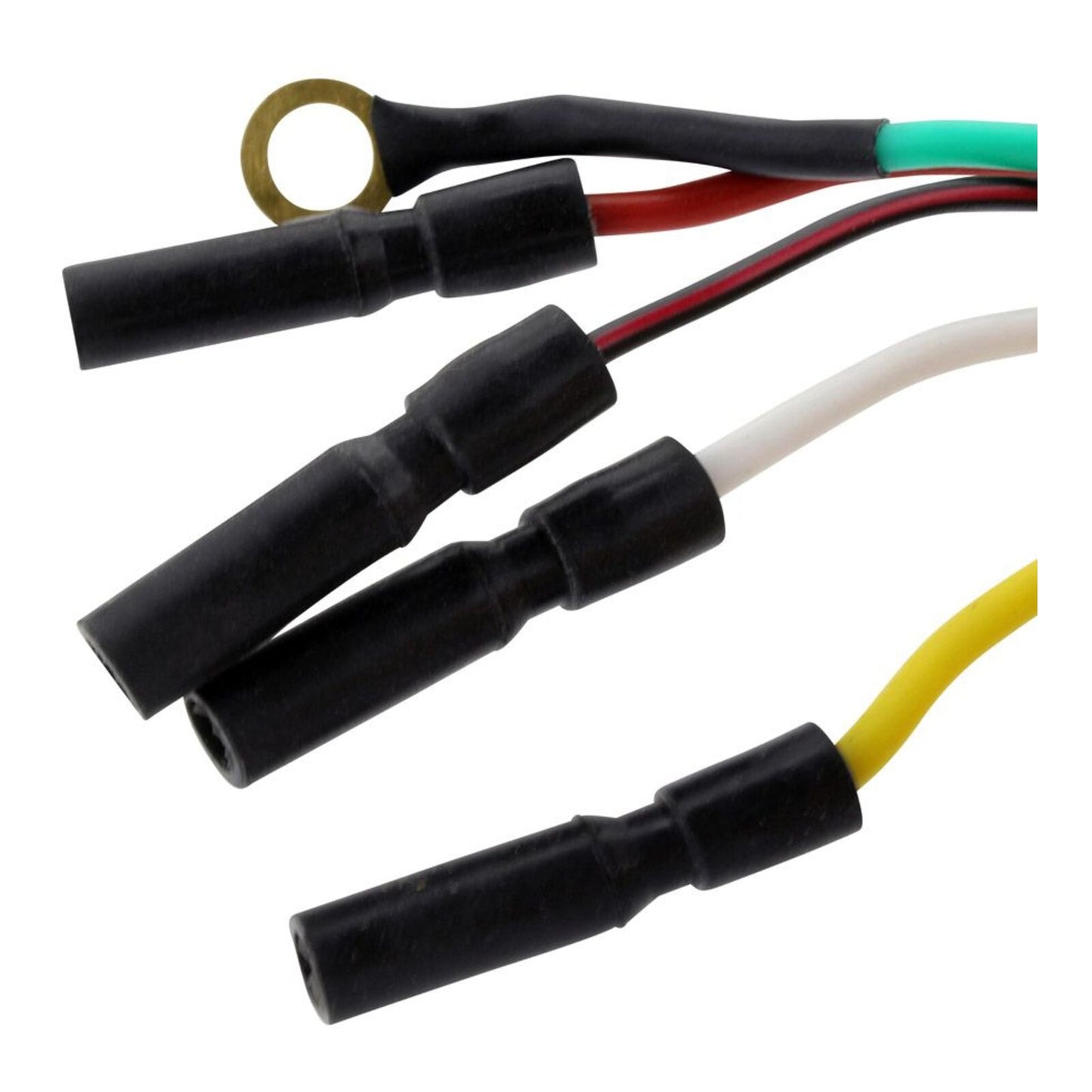

Connectors included
Rubber grommet included
All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before Installing the New Stator
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors
The stator might have a different wire colThe code than the original part. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
