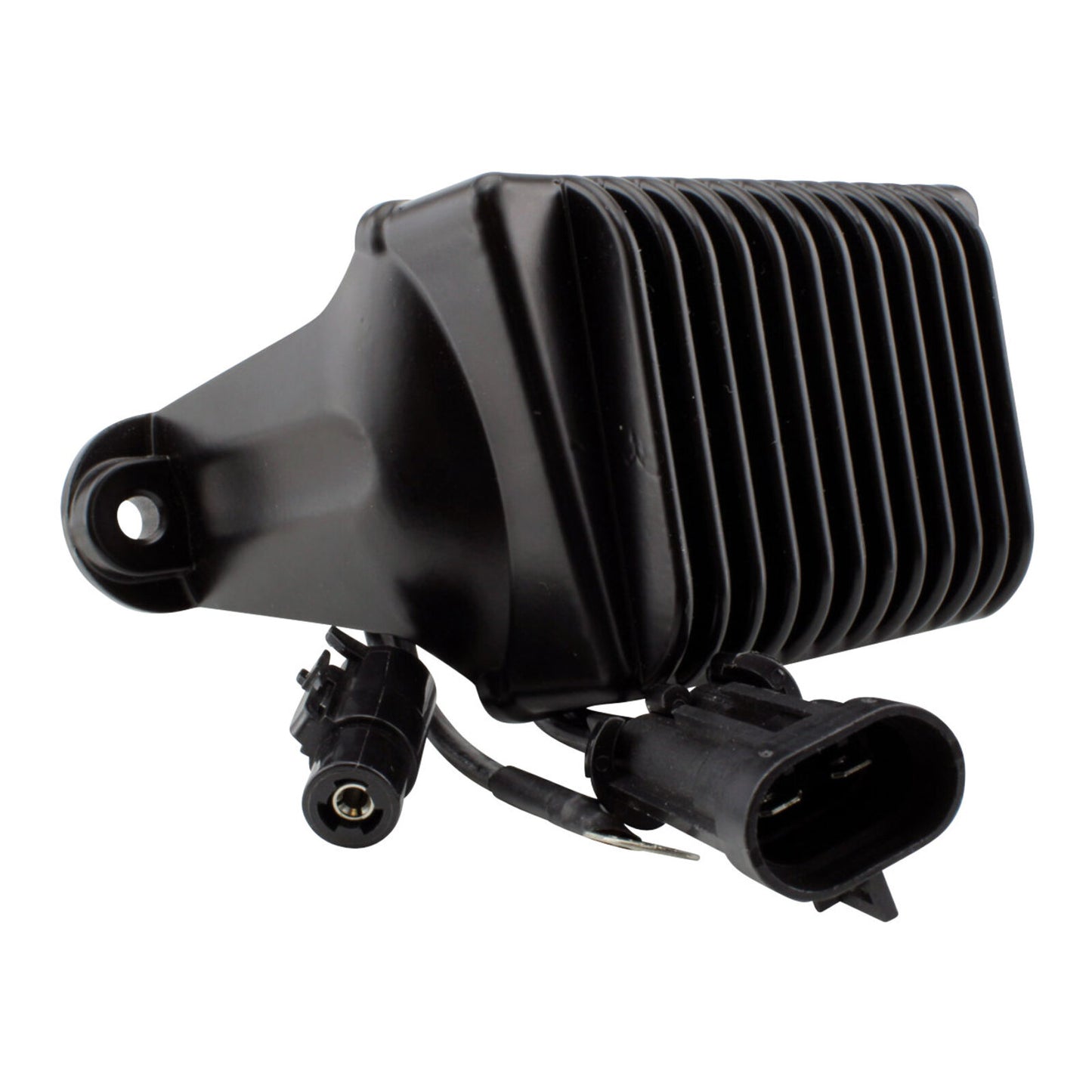

MOSFET Regulator - Harley-Davidson (Assorted Fitments) (RMS020-106922)

MOSFET Regulator - Harley-Davidson (Assorted Fitments) (RMS020-106922)

$229.99 AUD
$229.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Brand new MOSFET voltage rectifier regulator

STOP BURNING the REGULATOR RECTIFIER !
It is time to update or replace the voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

All item pictures are accurate, if in doubt, do not hesitate and compare The item to the original part.

Why use MOSFET Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging the battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


optimised power

optimise power delivery by switching the stator coils on or off.

How does a MOSFET regulator rectifier work?


RMSTATOR Enhanced technology=


With enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Before installing the new Voltage Regulator Rectifier:

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:
Width: 87 mm
Length: 179 mm
Height: 113 mm
Wires length: 240 mm
Distance between fixation holes centre to centre: 155 mm

Other specifications:
Number of plugs: 3
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
