HIGH PERFORMANCE CDI YAM YFM250 2001-2004 (RM02160)

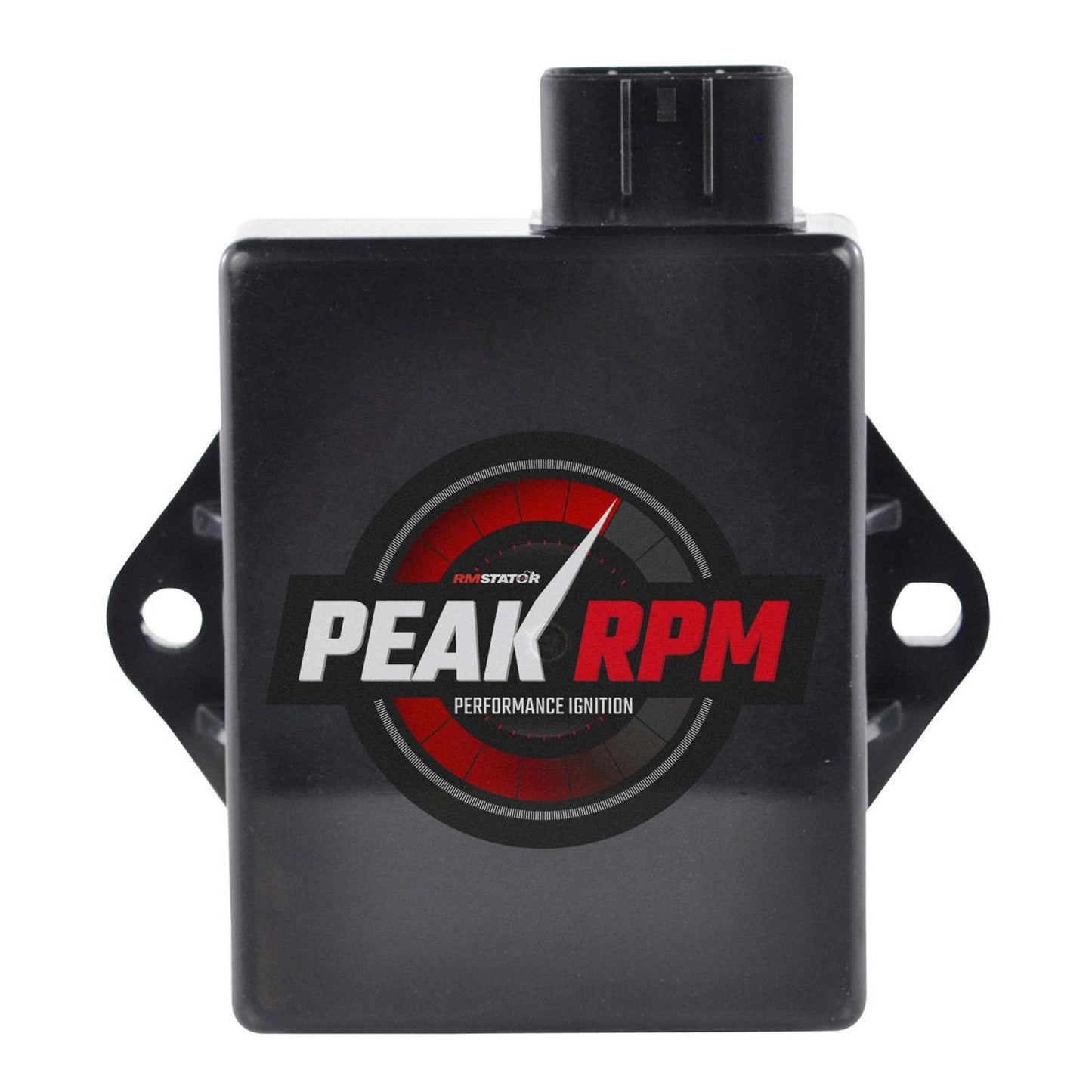

Brand new High-Performance aftermarket CDI box

• Our PeakRPM technology provides a more aggressive timing curve for increased throttle response
• Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM
• Enjoy fast & easy installation with our plug & play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

Dimensions:

• Height: 27mm
• Length: 96mm
• Width: 87mm
• Fixation holes centre to centre: 70mm

Other specifications:

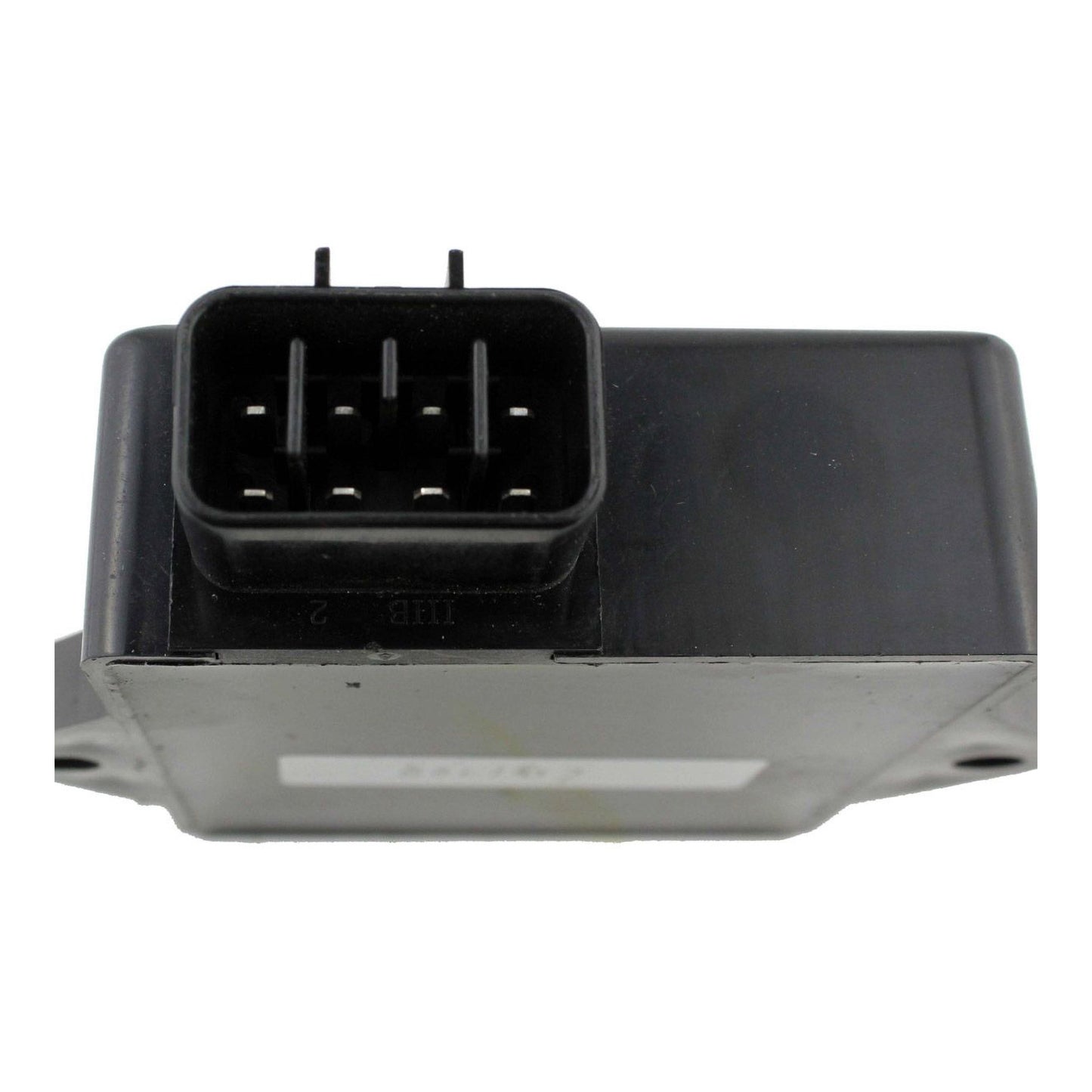

• Number of plugs: 1
• Number of pins: 8

Please Note: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
