STATOR + MITSUBISHI FLYWHEEL ASSTD APR MODEL (RMS900-104929)

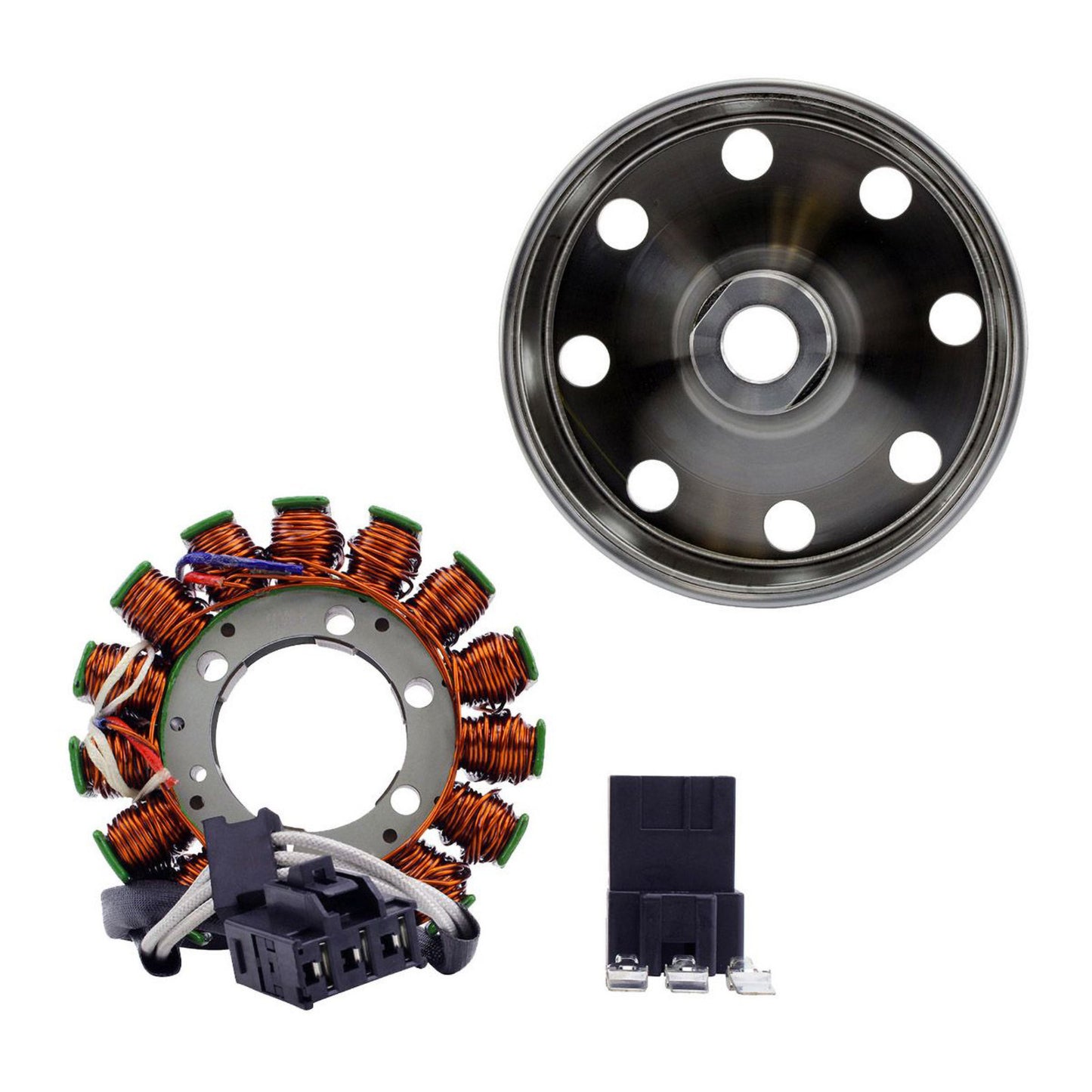

Brand new kit including flywheel and generator stator.

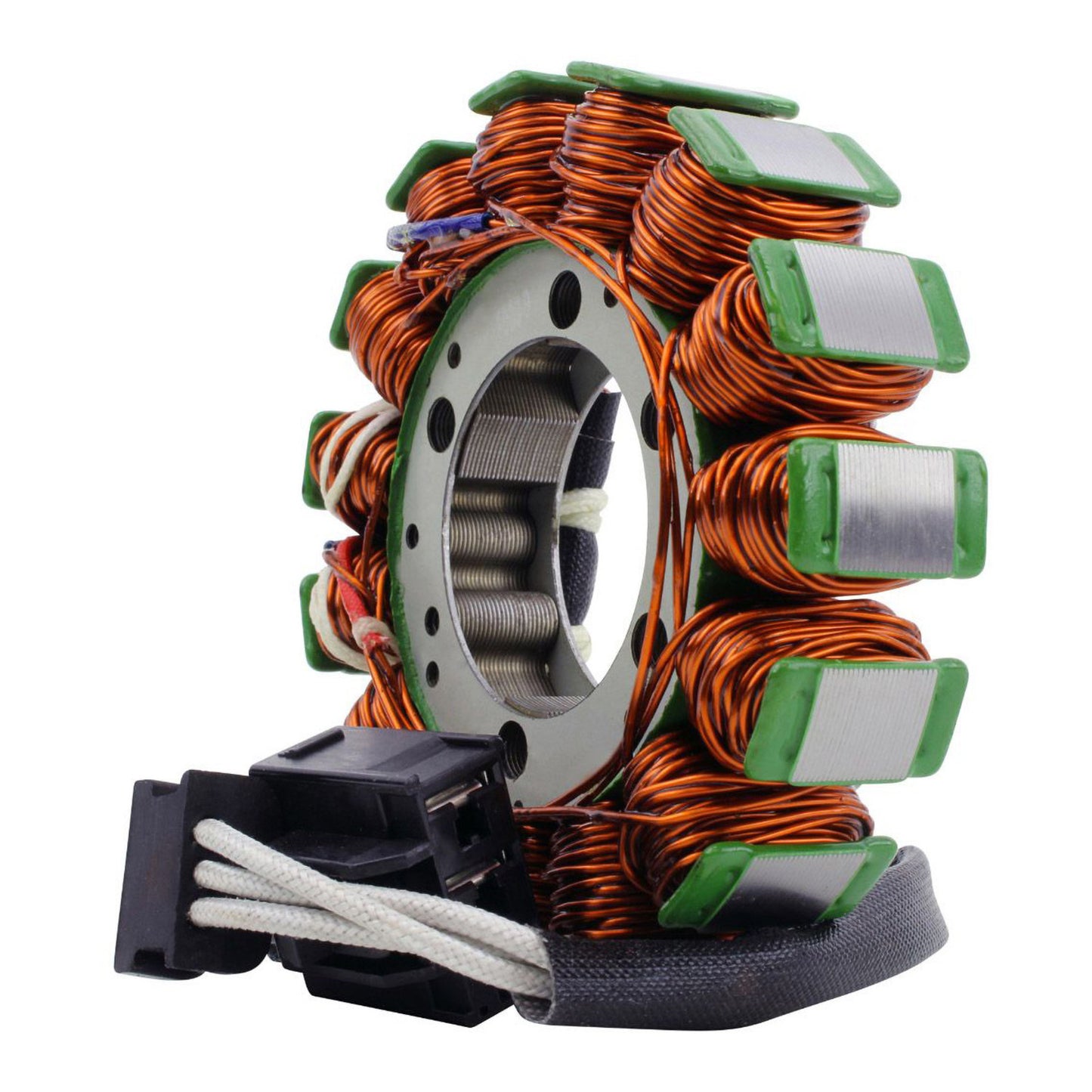

Brand New Aftermarket Stator:

• Direct replacement for the original unit.
• Plug-and-play, direct fit and easy installation.
• Made with high-grade lamination materials.
• High-grade copper winding, resistant to temperatures up to 200°C.
• Connector included.
• Rubber grommet included.
• All products are tested before shipping.

An opposite connector for the main harness side is also included, as these connectors are often melted, corroded or defective and can be a major cause of recurring electrical issues.

Brand New Magneto Flywheel Rotor:

• All products are tested.

All item pictures are accurate. If in doubt, compare the item with the original part.

Before Installing the New Stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator/rectifier.
• Check and repair any melted wiring.
• Use high-temperature dielectric grease on all connectors.

The stator may use a different wire colour code from the original. All wires are installed in the correct order; do not change any wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. Always use locking compound when bolting the stator in place. If the stator includes a pickup coil, ensure the air gap is correct during installation. We recommend setting it as close as possible, but no less than 0.010 inches.

Flywheel Installation:

Before attempting to start the Aprilia, adjusting the air gap is necessary. Rotate the flywheel until the raised node is aligned with the pickup/pulser coil. Adjust the gap as close as possible, but no less than 0.010 inches.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Generator Stator Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 105 mm
• Thickness: 17 mm
• Length of wires from stator to grommet: 90 mm
• Length of wires from grommet to plug: 300 mm

Stator Specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire-to-Wire Resistance:

• Alternator: Between each White = 0.4 ohms ±20%

Flywheel Dimensions:

• Exterior diameter: 115 mm
• Interior diameter: 108 mm
• Interior diameter of centre housing: 16 mm
• Exterior diameter of centre housing: 24 mm
• Exterior thickness: 30 mm
• Interior thickness: 33 mm
