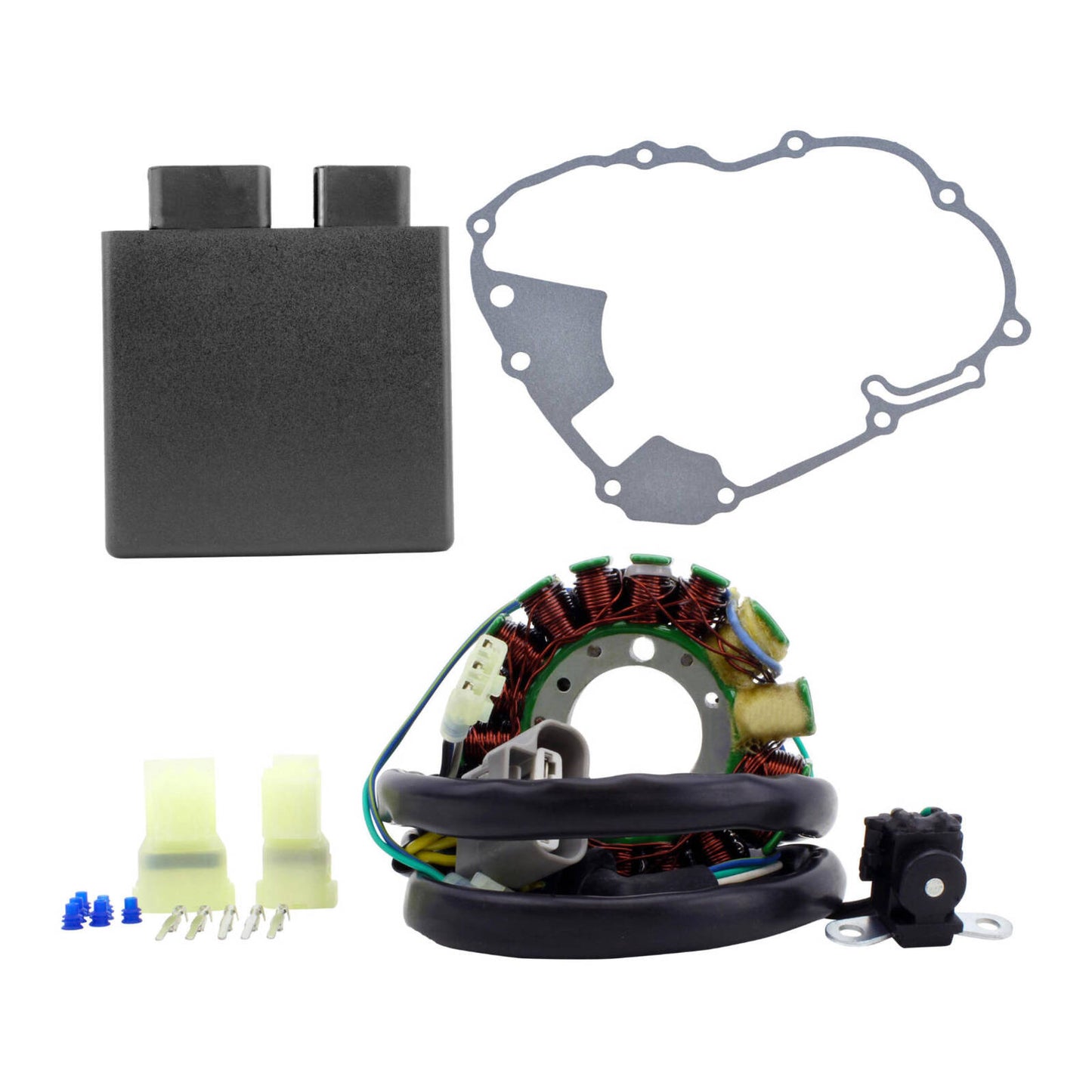

Brand new aftermarket stator, PeakRPM CDI box and gasket kit.
Direct replacement for the original unit.
Plug-and-play, direct fit and easy installation.
All products are tested before shipping.
All item pictures are accurate. If in doubt, compare the item with the original part.

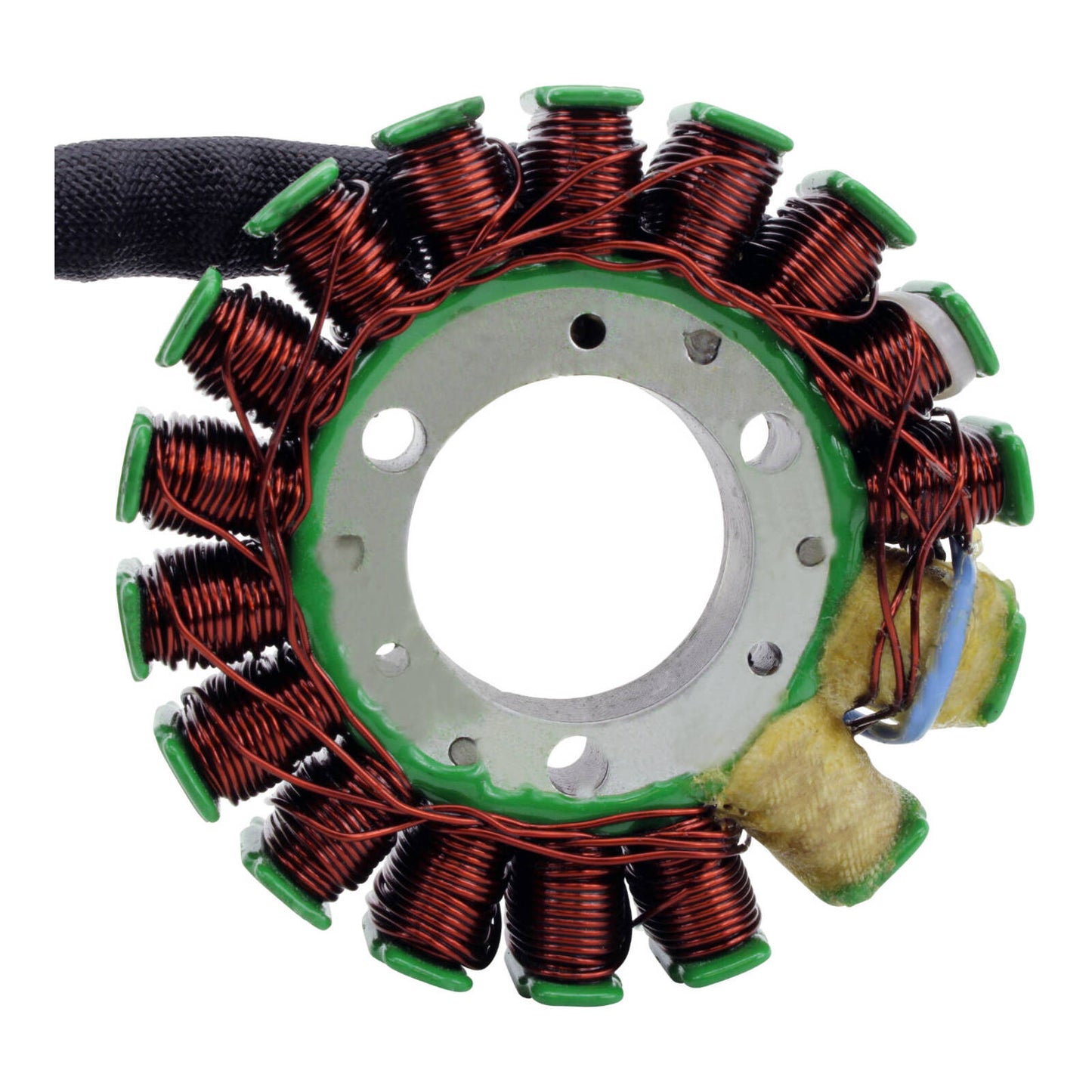

Stator Features:
Made with high-grade lamination materials.
High-grade copper winding, resistant to temperatures up to 200°C.
Pickup/pulser coil included.
Connectors included.
Rubber grommet included.
An opposite connector for the main harness side is also included, as these connectors are often melted, corroded or defective and can be a major cause of recurring electrical issues.
PeakRPM CDI Box Features:
Provides optimal output for the vehicle.
Higher-grade electronic components.
Quality exceeds OEM equipment.
Gasket:
Brand new stator crankcase cover gasket.
Before Installing the New Stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on the stator and regulator rectifier.
Check and repair any melted wiring.
Use high-temperature dielectric grease on all connectors.
The stator may use a different wire colour code from the original. All wires are installed in the correct order; do not change any wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. Always use locking compound when bolting the stator in place. If the stator includes a pickup coil, ensure the air gap is correct during installation. We recommend setting it as close as possible, but no less than 0.010 inches.
Before Installing the New CDI Box:
The CDI may use a different wire colour code from the original. All wires are installed in the correct order; do not change any wiring configurations. This CDI is designed as a direct plug-in replacement and should be used as such.
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Stator Dimensions:
Interior diameter: 34 mm
Exterior diameter: 92 mm
Thickness: 15 mm
Length of wires from stator to grommet: 75 mm
Length of wires from grommet to plug: 900 mm
Length of pickup coil wire to grommet: 80 mm
Stator Specifications:
Number of wires: 8
Number of plugs: 3
Number of pins: 8
Number of poles: 17
Wire-to-Wire Resistance:
Alternator 3P: Between each Yellow = 0.4 ohms ±20%
Alternator 1P: Yellow to ground = O.L.
Pickup: Green to Blue = 250 ohms ±20%
Source 1: Black/Red to Blue = 36 ohms ±20%
Source 2: Blue to White = 7 ohms ±20%
CDI Box Dimensions:
Height: 26 mm
Length: 75 mm
Width: 70 mm
CDI Box Specifications:
Number of plugs: 2
Number of pins: 14
Please Note: The only reliable way to test the CDI box is to swap it with another known-good unit from the same year, make and model. We recommend ruling out all other possible causes before replacing the CDI box.
