As featured by Dirt Trax Television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability.
Ultimate reliability
With stock charging systems, voltage regulators operate near maximum capacity, leading to heat and potential failure.
RMSTATOR SPLYT system ensures voltage regulators operate with 40% overhead, ensuring long life and stable output.
Better design
OEM stators use a single three-phase winding; SPLYT stator has two separate three-phase coil windings.
Each winding produces half the power of stock stator, reducing individual coil temperatures.
More available power
SPLYT kit includes an improved flywheel, boosting power output from 650 Watts to 900 Watts.
Ideal for vehicles with multiple accessories like extra lighting, stereos, or a winch.
Easy to install
Plug-and-Play design compatible with OEM parts; no special tools or expertise required.
Harnesses included
Includes relocation wiring harnesses for placing regulators anywhere on the vehicle for improved airflow and accessibility.

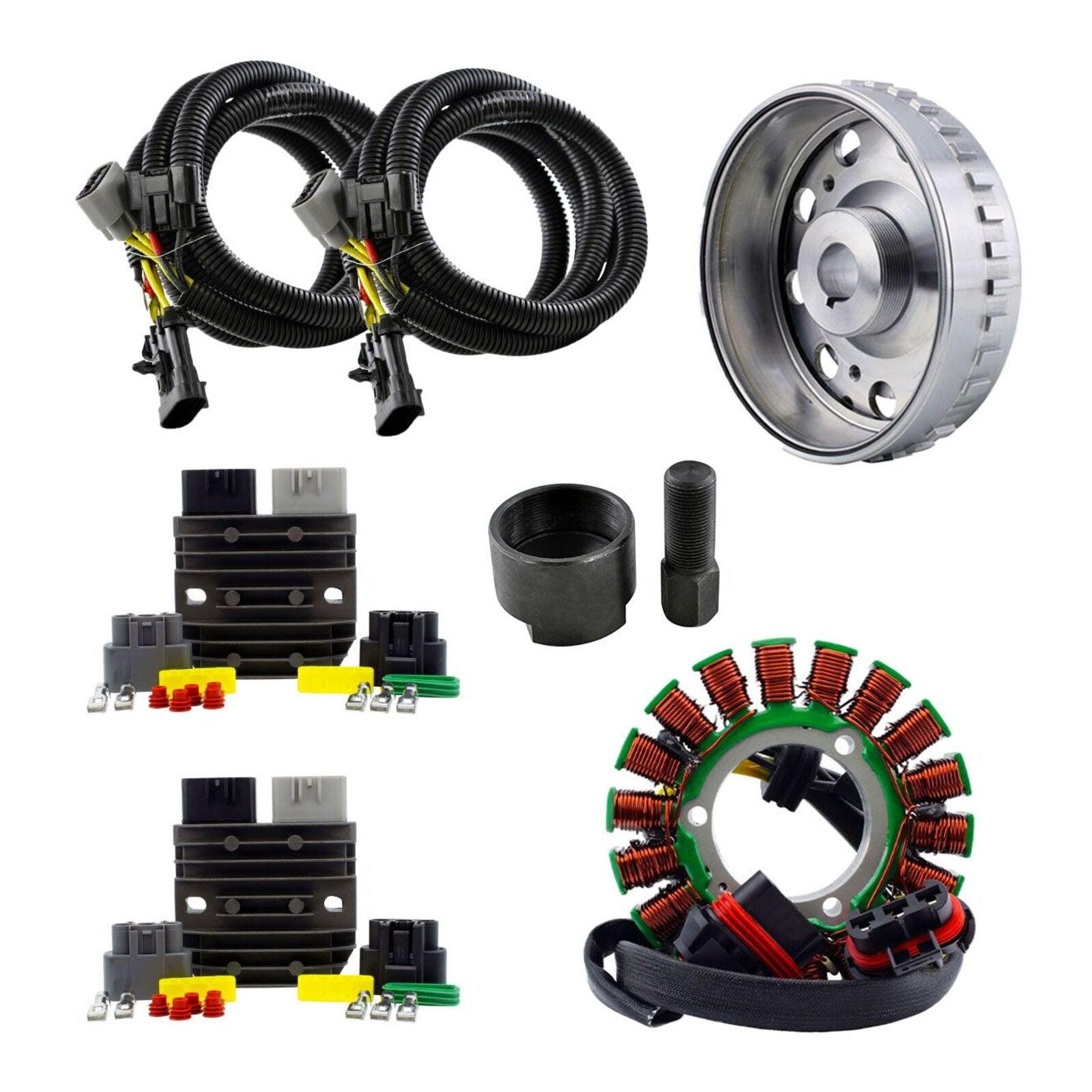

This kit includes:
Dual output stator

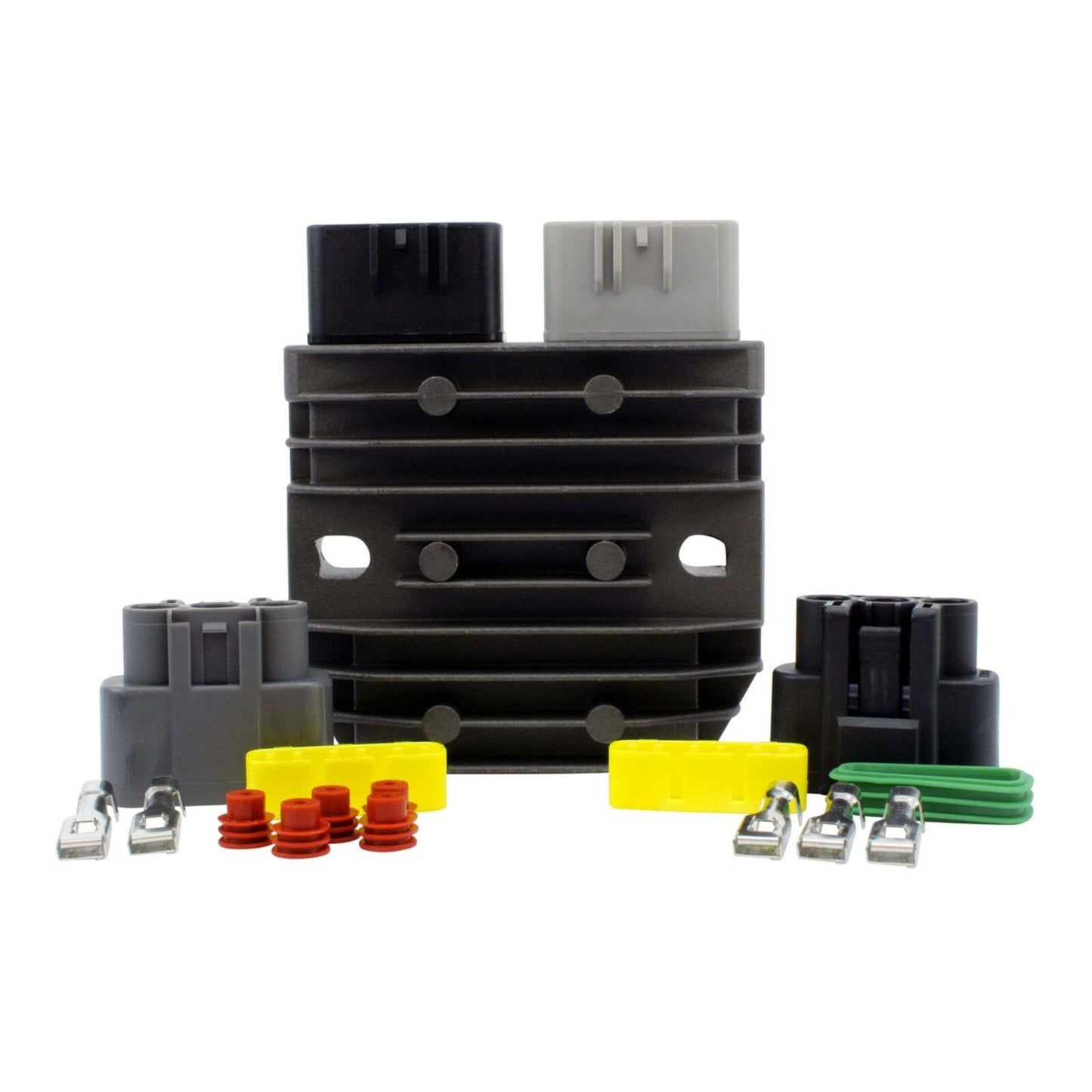

Two SERIES voltage regulators
Improved high-output flywheel
Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors
Flywheel puller
Complete instructions for voltage regulator relocation
IMPORTANT NOTICE: This kit includes two wiring harnesses according to Polaris recal # Z-16-01-C (OEM # 2206620, 2206367,2206473). We strongly suggest you to relocate both of your regulators to make sure they do not wear out prematurely due to mud, dust or rocks.
SPECIFICATIONS
Dual Stator Dimensions
Interior diameter: 53 mm
Exterior diameter: 125 mm
Thickness: 26 mm
Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 290 mm & 550 mm
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 18
Wire to wire resistance: Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +-20%
