STATOR KIT ASSTD CAN-AM MODELS RFR FITMENTS (RMS900-106953)

STATOR KIT ASSTD CAN-AM MODELS RFR FITMENTS (RMS900-106953)

Regular price $409.99 AUD
Regular price Sale price $409.99 AUD
Sale Sold out

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Brand new aftermarket Stator + Speed Sensor Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All product shipped are tested

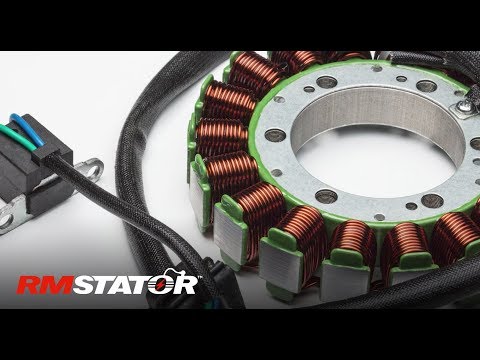

Brand new aftermarket stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

Stator

Dimensions:

  • I nterior diameter: 41mm
  • Exterior diameter: 104mm
  • Thickness: 30 mm Length of wires stator to grommet: 140mm
  • Length of wires grommet to plug: 850mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of terminals: 3

Wire to wire resistance:

  • Alternator: Yellow between each Yellow = 0.4 ohms +/-20%

Speed Sensor

Dimensions:

  • Width: 19mm
  • Length: 50mm
  • Height: 37mm
  • Wires length: 350mm

Other specifications:

  • Number of plugs: 1
  • Number of terminals: 3

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
