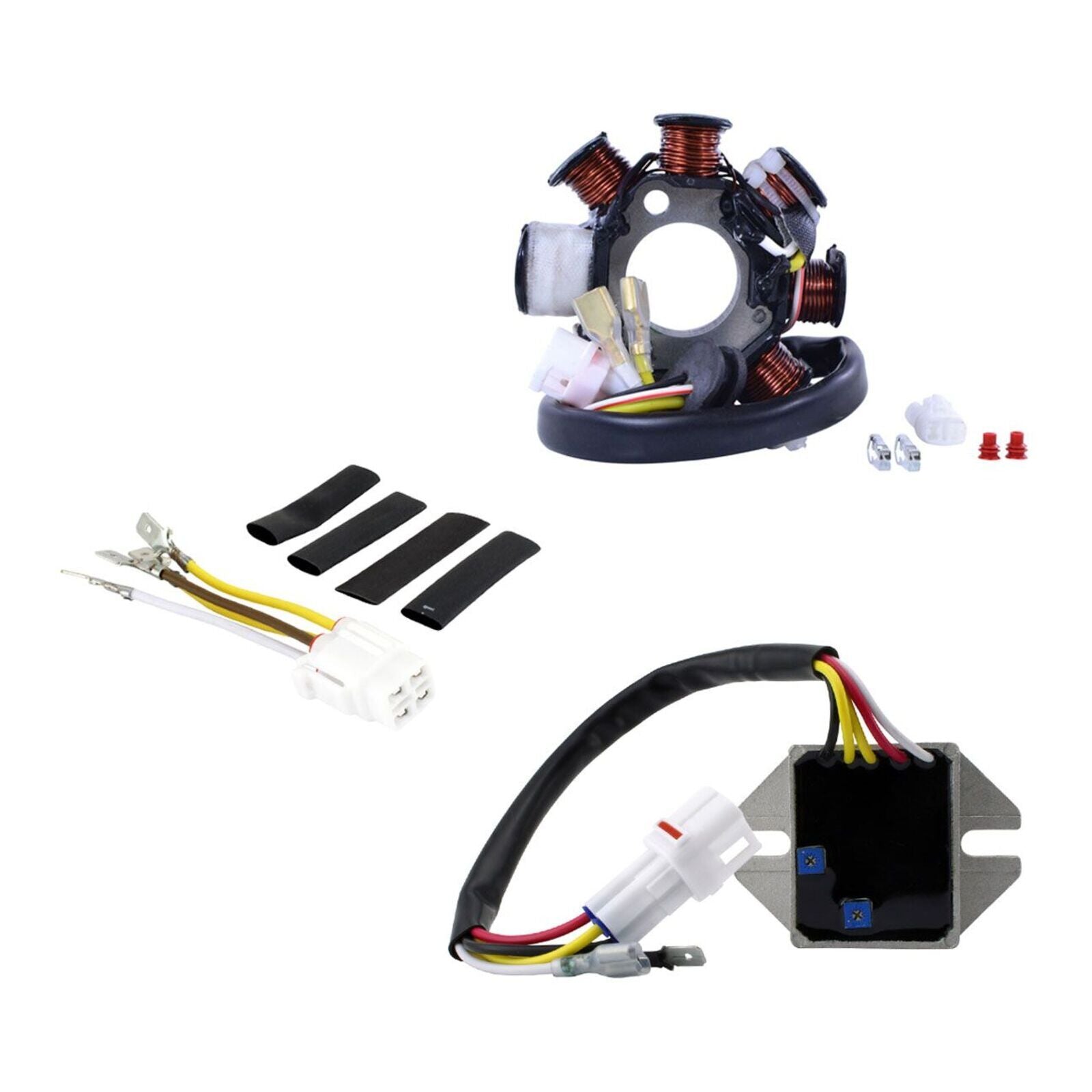

100W DC Converted Kit Stator + Voltage Regulator + Harness
100-watt DC charging system
Replaces the OEM stator with a 100W high-output stator
Converts the AC system into a high-power DC system
All products are tested before shipping
Product images are accurate. If unsure, compare the items with your original parts before ordering.
Brand New Aftermarket Stator
High-grade lamination materials
High-grade copper windings resistant to temperatures up to 200°C
Connectors included
Rubber grommet included
An opposite connector (main harness side) is included, as original connectors are often melted, corroded or defective and can cause recurring electrical issues.

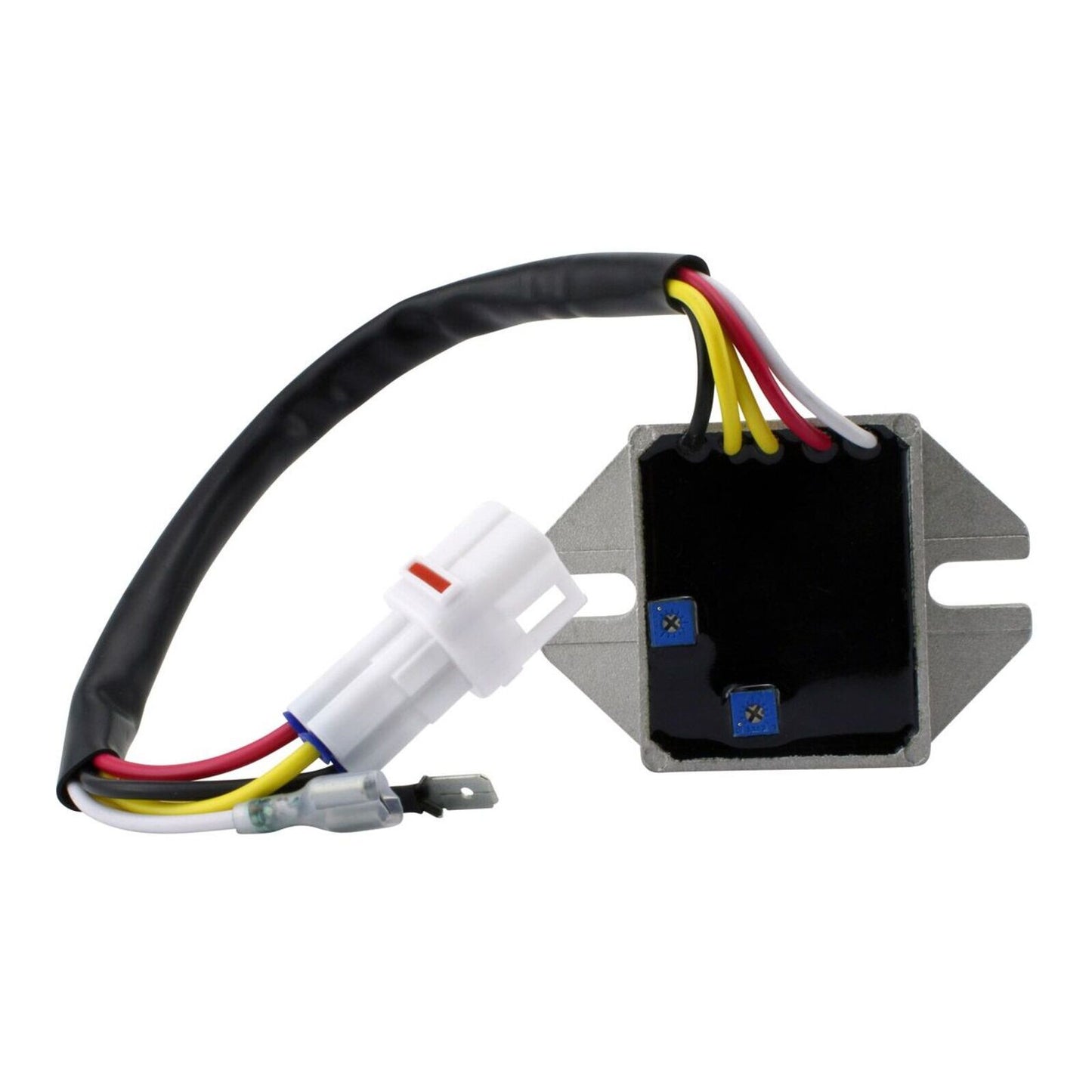

Brand New Aftermarket Voltage Regulator Rectifier
No assembly required
Higher-grade electrical components
Connectors included
Quality exceeds OEM equipment
Before Installing the New Stator
Check the AC output of the stator.
Replace any burned or corroded connectors on the stator and regulator rectifier.
Check and repair any melted wiring.
Apply high-temperature dielectric grease to all connectors.
The stator may use a different wire colour code from the original part. All wires are installed in the correct order; do not change the wiring configuration. This stator is designed as a direct plug-in replacement. Always use thread-locking compound when securing the stator. If the stator includes a pickup coil, check the air gap during installation. Set it as close as possible, but no less than 0.010".
Before Installing the New Voltage Regulator Rectifier
Check the AC output of the stator.
Replace any burned or corroded connectors on the stator and regulator rectifier.
Check and repair any melted wiring.
Apply high-temperature dielectric grease to all connectors.
Warning
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Stator Specifications
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 83 mm
Thickness: 13 mm
Stator-to-grommet wire length: 60 mm
Grommet-to-plug wire length: 490 mm
Other Specifications:
Number of wires: 4
Number of plugs: 3
Number of pins: 4
Number of poles: 8
Alternator resistance (white to yellow): 0.5 ohms ±20%
Source resistance (white/red to black/red): 30 ohms ±20%
