RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)
RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)
Regular price
$259.99 AUD
Regular price
Sale price
$259.99 AUD
Unit price
/
per
Couldn't load pickup availability
This replacement kit is only meant to the bypass the internal voltage regulator on Polaris ATV/UTVs that use the large silver SurePower ECM module with 2 large wiring connectors on opposite sides of the unit. Please confirm your OEM part number on your unit matches the list below.
Replaces these OEM Numbers :
- 4011089
- 4011090
- 4011598
- 4011375
- 4011657
- 4011226
- 4011517
Specifications:
Red Machined Aluminum Mosfet Regulator:
-
Dimensions:
- Width: 103 mm
- Length: 103 mm
- Height: 28 mm
- Fixation holes center to center: 80 mm
-
Other specifications:
- Number of plugs: 2
- Number of pins: 5
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C

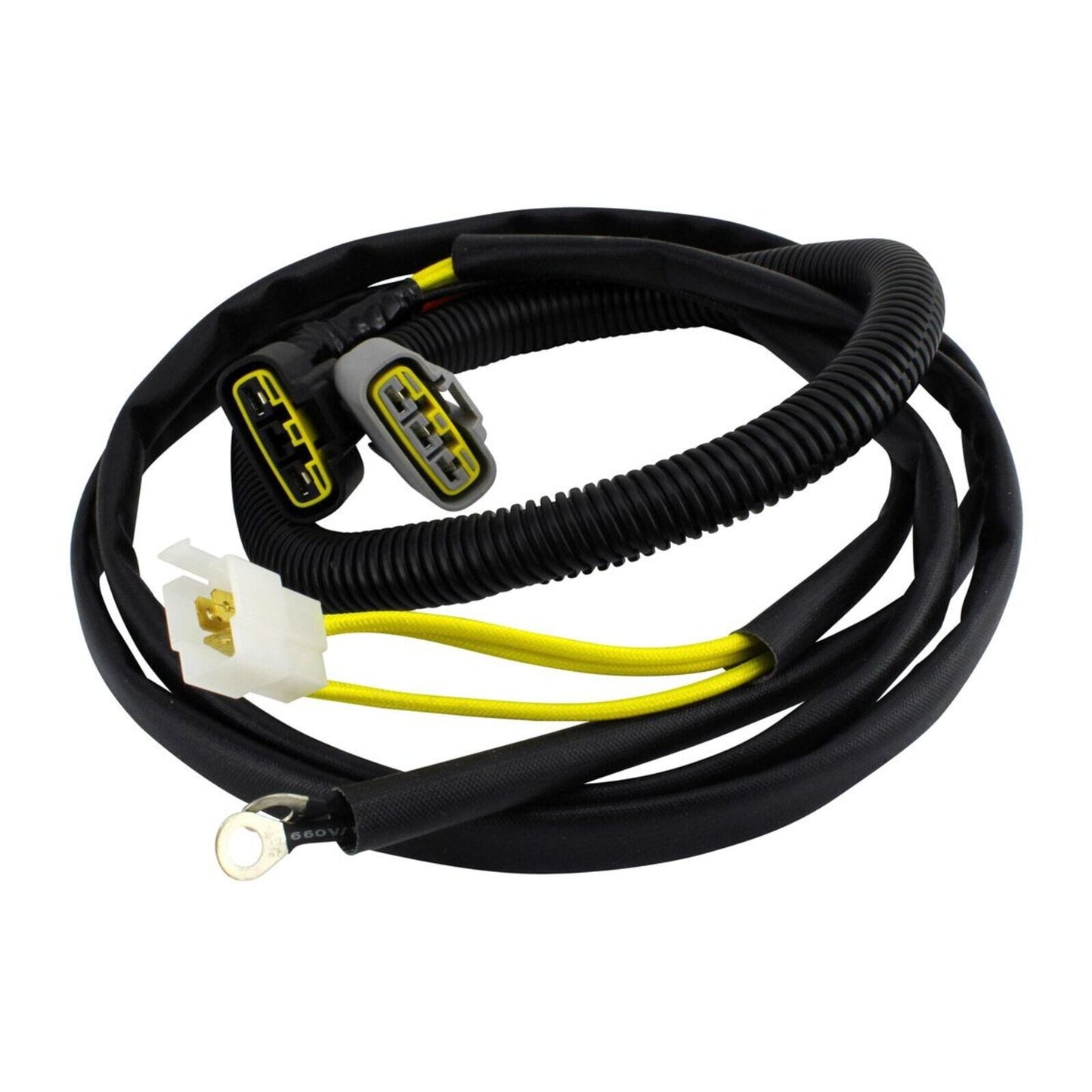

Polaris Surepower Module Regulator bypass Harness:
-
Specifications:
Wires length: 1000 mm - Number of yellow wires: 3
- Number of red wires: 1
- Number of black wires: 1
- Number of plugs: 3
