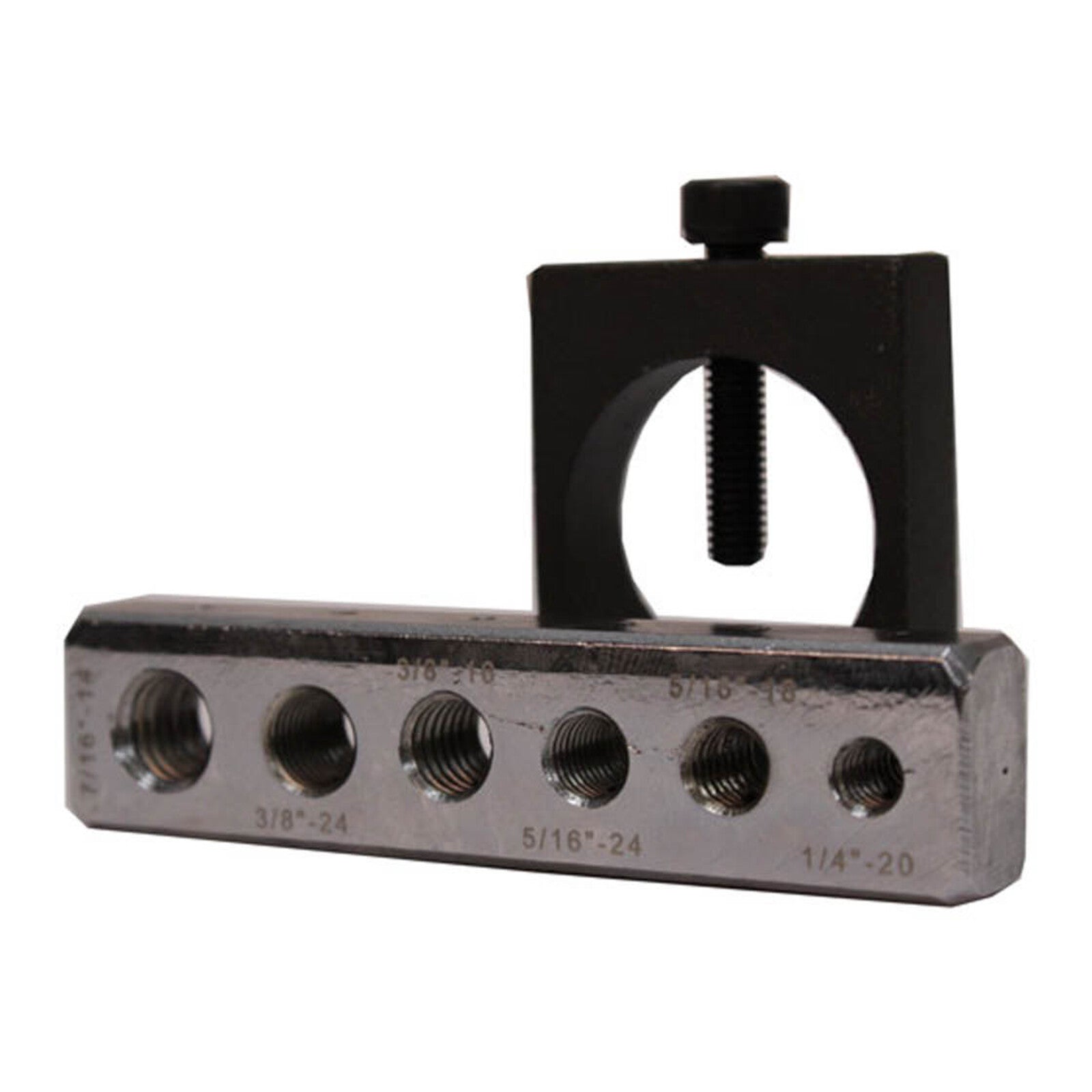

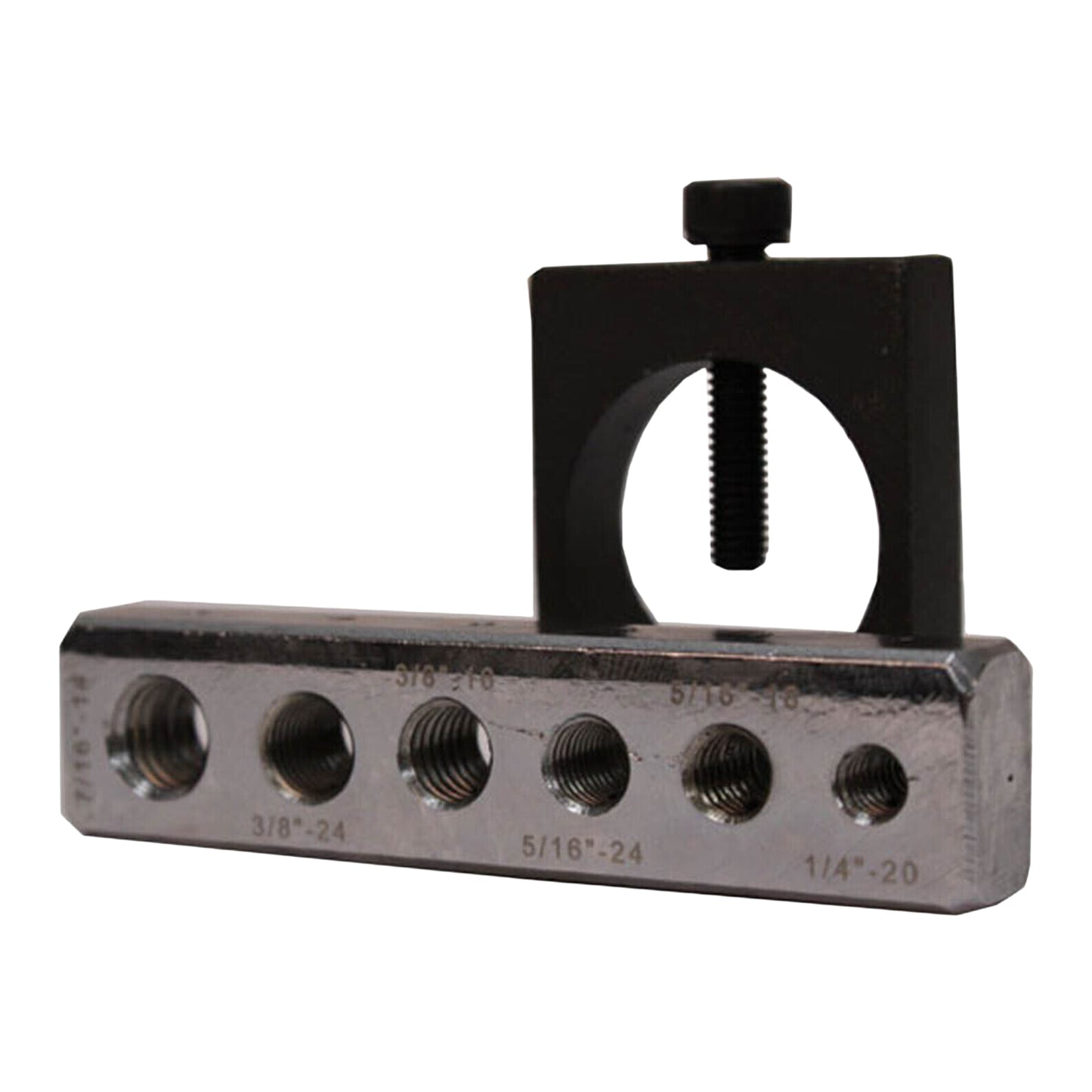

WMP Safety Wire Nut And Imperial Bolt Drill Jig Kit

Including a nut drill jig and bolt drill jig, the WMP Imperial Drill Jig Kit is perfect for securing critical nuts and bolts on your ride. The kit allows you to drill up to a 2mm hole through nuts and bolts without slipping, ensuring a straight hole and preventing damage to the nut, bolt or yourself. The nut jig accepts up to 1-3/8 diameter nuts, while the bolt jig accepts 6 different-sized imperial bolts from 1/4 -20 to 7/16 -14.

Features:

• Nut and bolt drill jigs included.
• Nut jig accepts up to 1-3/8 diameter nuts.
• Bolt jig includes sizes 1/4 -20 5/16 -24 5/16 -18 3/8 -16 3/8 -24 and 7/16 -14.
• Drills up to a 2mm hole (requires 2mm drill bit or smaller - not included).
• Prevents crucial nuts and bolts loosening during use.

We recommend using WMP Safety Wire (HWSSW0705KG or HWSSW0710M or HWSSW12) and WMP Safety Wire Pliers (TMPSWS or TMPSWL) for optimal mounting.
